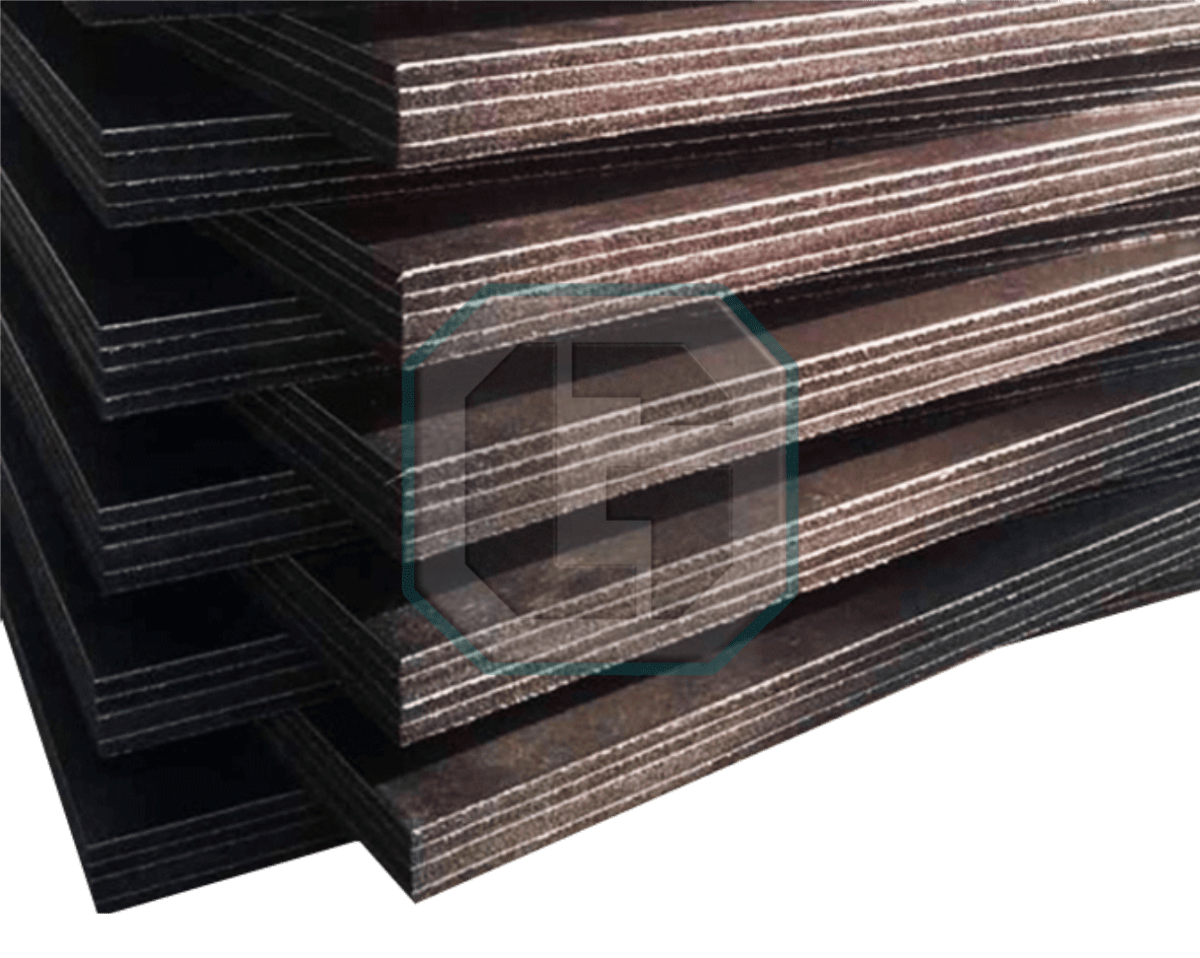

DescriptionGraphite Insulation ShapesPre-fired / Heat-treated Temp: 3992℉ | 2200℃Grade: Graphite Insulation Boards (Rayon)Fabrications: Custom shapes & designs per customer supplied dimensionsWhat are Graphite Insulation Shapes? Graphite Insulation Shapes are manufactured and fabricated from our rayon graphite boards. This insulation material is specifically designed for high-temperature vacuum and inert gas furnaces, among other applications. Material is pre-fired / heat-treated to 3992℉ (2200℃) to promote consistent insulation performance, higher purity, and reduced ash content. The material can be purified to ≤ 20ppm if needed and our engineering team will work with you to fabricate exactly what is needed for your application.Surface & layering Options Materials such as Graphite Foil, Carbon Fiber Composite (CFC), and GraphiSeal can be used to enhance the perforamnce of our graphite boards and shapes. Foil and CFC can be used on exterior surface(s) or layered internally.Graphite foilDust generation preventionSurface protectionLow gas-permeabilityIncrease radiant heat retention while reducing issues with furnace contaminant containmentDecreases pump downtimes and increases longevity of the insulationCarbon Fiber Composite (CFC)Dust generation preventionHigh strength and surface protectionPromotes excellent durability, impact, & wear resistanceGraphiSeal CoatingReduce porosity and dustingImprove oxidation resistanceSurface(s) and/or edge(s) can be sealed with specified number of coatsMaterial can be mixed with Silicon Carbide powder to produce an anti-eutectic coatingBenefitsMaterial able to be fabricated into any number of shapesLarge size and complex shapes fabricated to printsGraphite Foil option available on surface(s) or layeredCFC option available on surface(s) or layeredGraphiSeal Coating option available on surface(s) and/or edge(s)Thermal shock and erosion resistanceStable and low thermal conductivityMany fabrication methods such as monolithic, off-set ship lap, tongue & groove, or angle cutsMaterial can be purified or another grade selected to meet / exceed application specificationsEngineering and manufacturing can produce material to meet application specifications and propertiesSpecialty grades available and purification services availableExpedited manufacturing services availableApplicationsVacuum FurnacesPowdered Metal SinteringAnnealing & Hot PressingSilicon / GaAs Crystal Growing FurnacesSputtering TargetsFiber Optics ProductionCVD, CVI, and CVR FurnacesGraphite Purification FurnacesCarbon Fiber Heat Treating FurnacesValve insulation and seatsLids, retorts, & other protective atmosphere applicationsHeat insulators for a range of high-temperature furnacesPropertiesPropertiesUnitsGraphite Insulation Boards (Rayon)Densityg/cm30.17Carbon Content%≥ 98-99.9Thermal Conductivity 3632℉| 2000℃ 4532℉| 2500℃ W/mk W/mk 0.48 0.61Specific Resistanceohm.cm0.18 - 0.22Bending StrengthMPa1.10Compressive StrengthMPa1Ash Contentppm1000Ash Content Purifiedppm≤ 20Moisture Absorption%≤ 1.0Volatiles%NilTemperature Rating1℉| ℃5432 | 3000Pre-fire temp℉| ℃3992 | 2200Standard Size Boardinches40 x 60Max Size Boardinches60 x 60Max Thicknessinches≤ 20"Alternate Sizing & PuritiesStandard | MetricContact usNotes:1Temp rating in vacuum or inert atmosphere Documents Technical Data Sheet Coming Soon! Safety Data Sheet
